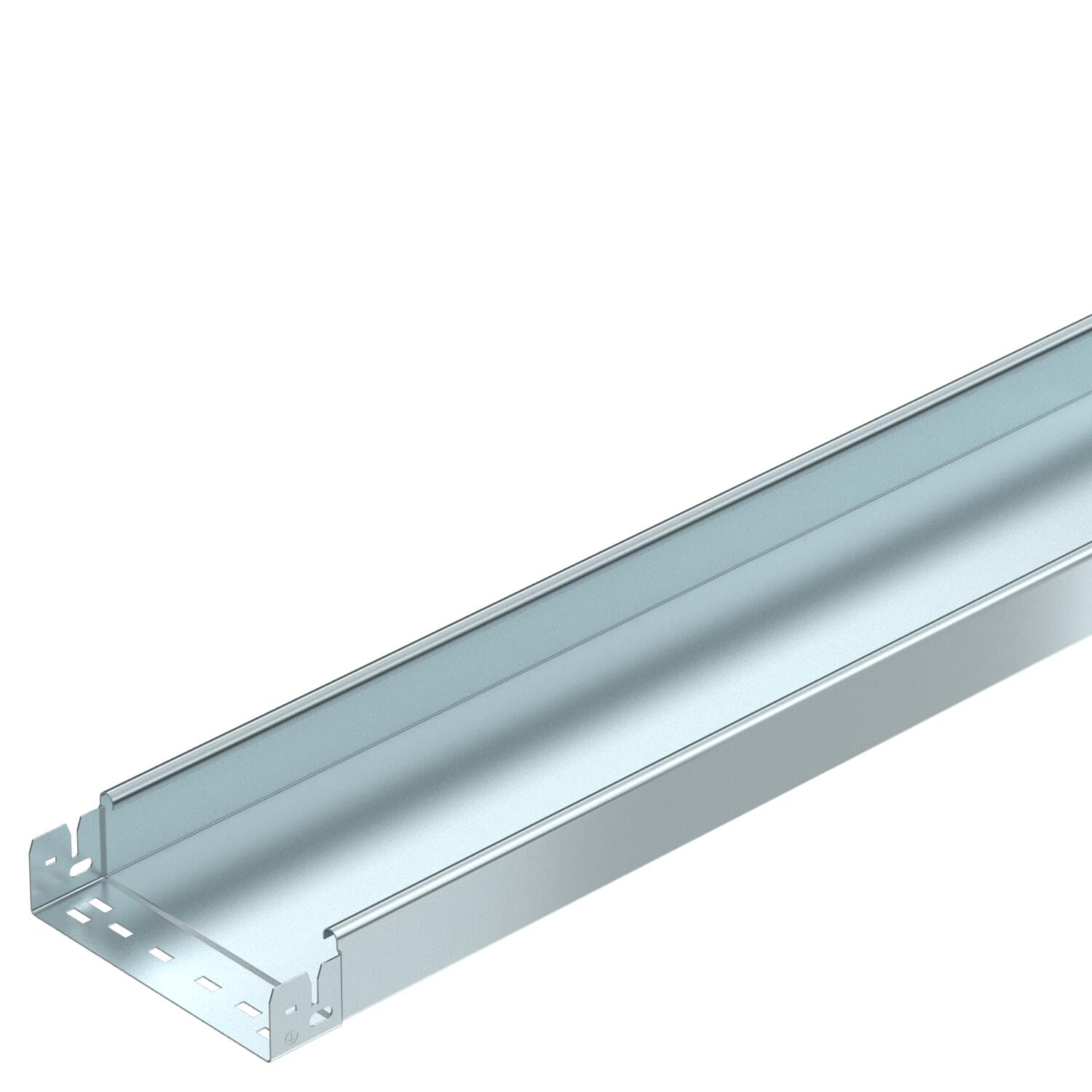

Cable trays MKS-Magic, unperforated 60 FS

6059230Cable tray MKSMU unperforated, quick connector , 60x100x3050 , MKSMU 610 FS6059232Cable tray MKSMU unperforated, quick connector , 60x150x3050 , MKSMU 615 FS6059234Cable tray MKSMU unperforated, quick connector , 60x200x3050 , MKSMU 620 FS6059237Cable tray MKSMU unperforated, quick connector , 60x300x3050 , MKSMU 630 FS6059239Cable tray MKSMU unperforated, quick connector , 60x400x3050 , MKSMU 640 FS6059241Cable tray MKSMU unperforated, quick connector , 60x500x3050 , MKSMU 650 FS6059243Cable tray MKSMU unperforated, quick connector , 60x600x3050 , MKSMU 660 FS

Product details

Product description
Product name
Cable tray MKSMU unperforated, quick connector , 60x200x3050 , MKSMU 620 FS
GTIN
4012195831365
ELDAS-No.
127 011 519
Item description, complete
Unperforated cable tray with integrated quick fastening system. The usable length of the cable tray is 3,000 mm.
Manufacturer
OBO Bettermann
Type
MKSMU 620 FS
Technical data
Colour
zink>zinc
Material
Steel Strip galvanised
Type of connector, cable support system
Click fastening
Connector version
Integrated connector
Plate thickness (mm)
1
Width (mm)
200
Dimension
60x200x3050
Maintain electrical functions
no
Weight
2,69836
Height (mm)
60
Length (mm)
3050
Rustproof steel, pickled
no
Wide-span version
no
Classifications
ETIM group
EG000004
ETIM class
EC000047
Other data
Tender text
Cable tray MKSMU MKSMU 620 FS Cable tray with quick connection system, tested according to DIN EN 61537 and VDE-certified, including all the relevant connection components for time-saving and economic installation, unperforated version. System with EMC protection function. Corrosion protection: Strip galvanised according to DIN EN 10346 Plate thickness: 1 mm Side height: 60 mm Width: 200 mm Length: 3050 mm Load capacity: 1.5 kN/m at Support spacing 1.5 m Deliver and mount Make: OBO Bettermann Type: MKSMU 620 FS Item no.: 6059234 Unit: m
